Jigs

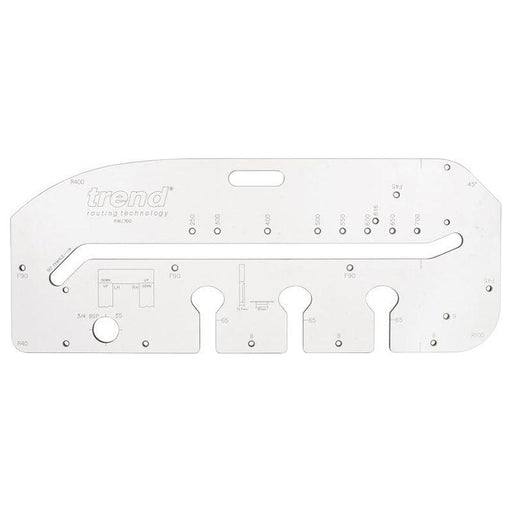

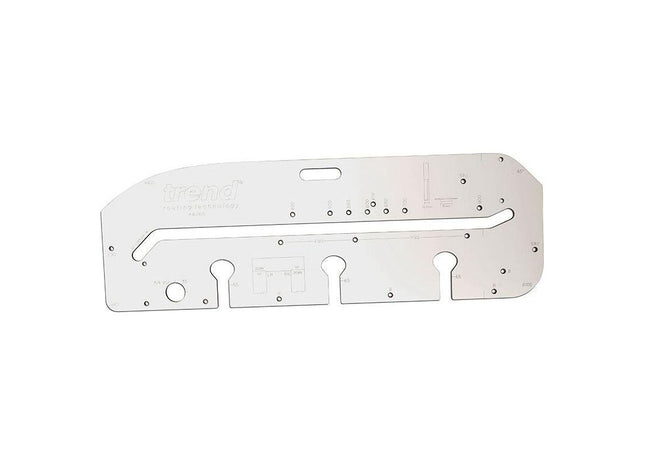

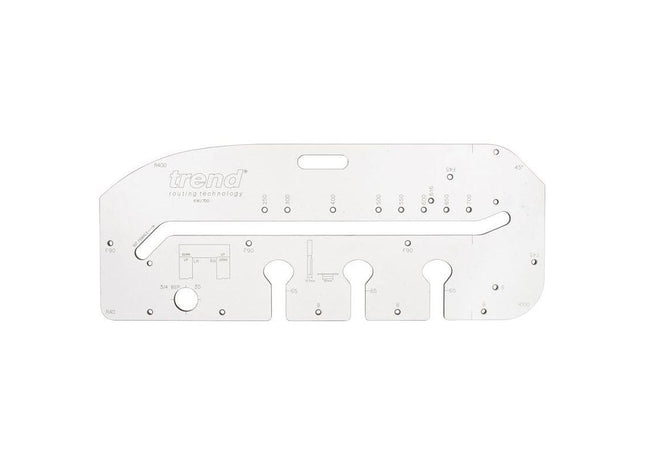

The Trend Kitchen Worktop Jig is a hard-wearing solid laminate, 12mm thick jig that enables cutting both parts of the joint in 15 minutes including setting up. The jig has the following features: Left and right hand corners, 400mm radius peninsular joint, 45° end cut with slight radius, 45° trade corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps. Engraved lines for 65mm bolts and worktop cross-cut. 6 x 10mm diameter ABS plastic pins with tapered shoulders for a tight fit and 3 point pin contact to ensure ease of setting up.The KWJ700 has fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 650mm and 700mm worktops. Length: 985mm.Width: 390mm.Thickness: 12 mm.Weight: 5.4 kg.End Cut: 45°.Corner Radii: 40mm, 100mm and 400mm.Corner Mitre Joint: 45°.Female cut material width loss: 35 mm.

Read more less

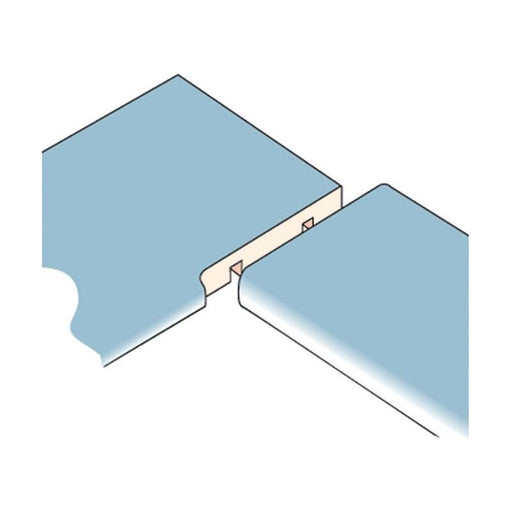

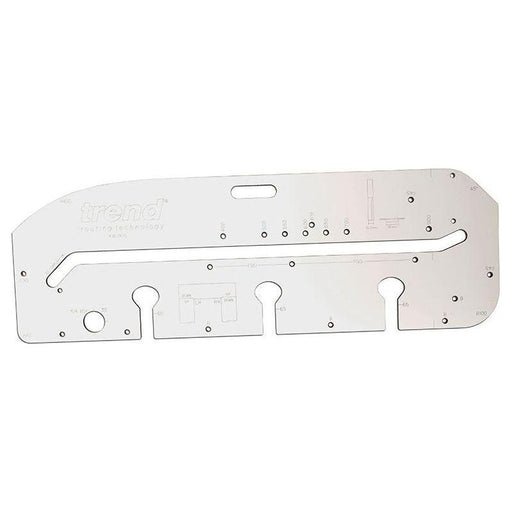

The Trend Kitchen Worktop Jig is a hard-wearing solid laminate, 12mm thick jig that enables cutting both parts of the joint in 15 minutes including setting up. The jig has the following features: Left and right hand corners, 400mm radius peninsular joint, 45° end cut with slight radius, 45° trade corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps. Engraved lines for 65mm bolts and worktop cross-cut. 6 x 10mm diameter ABS plastic pins with tapered shoulders for a tight fit and 3 point pin contact to ensure ease of setting up.Tradesman ALL IN ONE work top jig for up to 900 mm worktops. Hard wearing solid laminate 12 mm thick jig that cuts both parts of the joint in 15-minutes including setting up and left hand and right hand corners, 400 mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100 mm radius corner, 40 mm radius corner, 35 mm kitchen door hole and 3/4 inch BSP hole for mixer taps. It covers fixed lengths for 400 mm, 500 mm, 550 mm, 600 mm, 616 mm, 650 mm, 700 mm and 900 mm wide worktops and can cuts up to 40 mm thick worktops with or without anti-drip postformed edge. Three open-ended bolt recesses (dog bone style) for 150 mm bolts. Engraved lines for short 65 mm bolts and worktop cross-cut. 10 mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up. Engraved markings for identification of pin holes. Specification:Length: 1185 mm. Width: 390 mm. Thickness: 12 mm. Weight: 7.7 Kg. End cut: 45 degrees. Corner radius: 40 mm. Corner radius: 100 mm. Corner radius: 400 mm. Corner mitre joint: 45 degrees.

Read more less

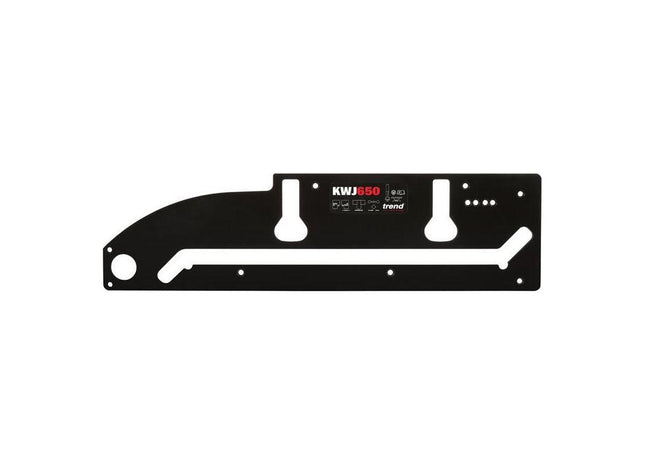

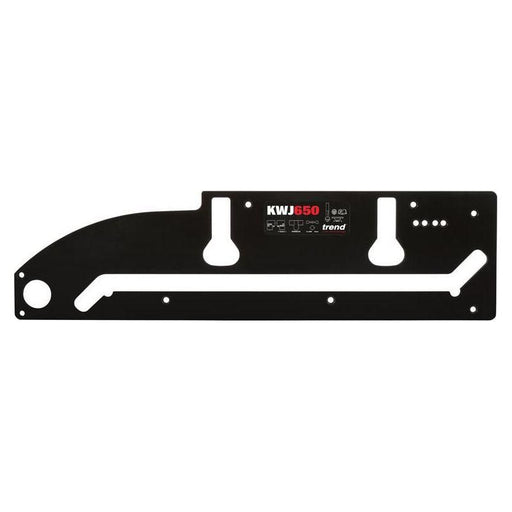

Trend Kitchen Worktop Jig for worktops up to 650mm. Made from hard-wearing, CNC machined Compact Grade High-Pressure Laminate, 12mm thick. Cuts both parts of the joint in 15 minutes, including setting up. For cutting: left and right-hand corners, 400mm radius peninsular joint and 35mm kitchen door hole. With fixed lengths for 600mm, 616mm, 635mm and 650mm wide worktops. Cuts worktops up to 40mm thick, with or without anti-drip postformed edge. It can also be used to cut 2 open ended bolt recesses (dog bone style) for 150mm bolts. Ø10mm plastic pins with tapered shoulders for tight fit provides 3-point pin contact to ensure ease of setting up. The pins are made from ABS plastic for strength.

Read more less

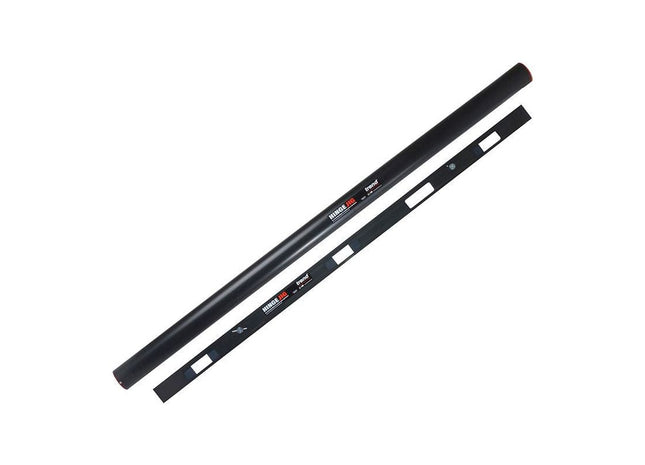

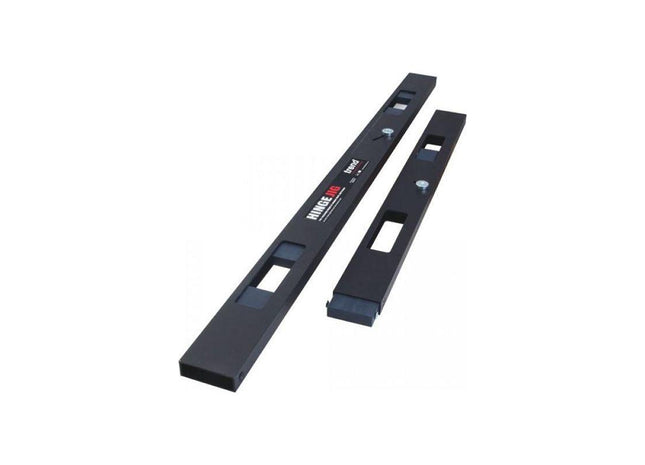

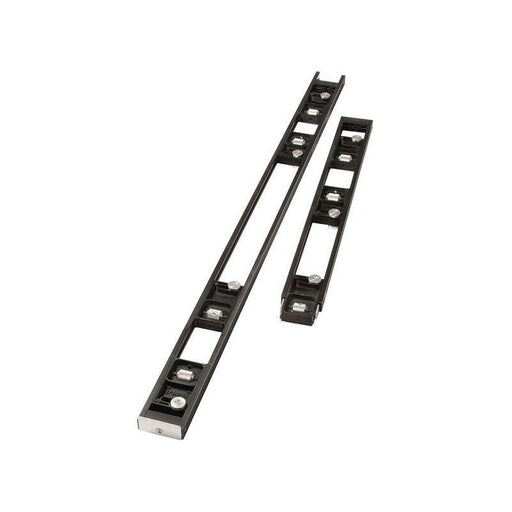

The Trend Skeleton Hinge Jig is a 2-part, adjustable portable template set designed for recessing hinges in wooden doors and frames with a router. It is easy to use with minimal setting-up time, ensuring the job can be completed accurately and quickly. It is ideal for use on-site and in joinery shops to increase productivity with excellent results.The jig has fully adjustable apertures for fire door requirements and renovation work. It is ideal for fitting a new door into an old frame and is suitable for timber-based doors and square butt hinges. The jig is supplied with a carry case, bradawls and a special 16mm guide bush. Specifications:Pre-set hinge sizes: 20mm, 25mm and 30mm. Hinge sizes possible:Minimum length: 67mm (2.5/8in).Maximum length: 127mm (5in).Minimum width: 12.7mm (1/2in).Maximum width: 35mm (1.3/8in). Door sizes possible:Minimum height: 1,956mm (6ft5in).Maximum height: 2,100mm (6ft10in).Minimum thickness: 16mm (5/8in).Maximum thickness: 51mm (2in). Weight: 2.9kg.Overall length: 1,956mm.

Read more less

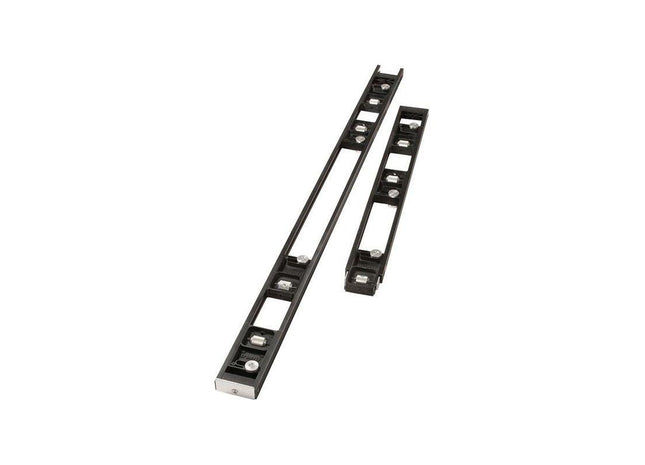

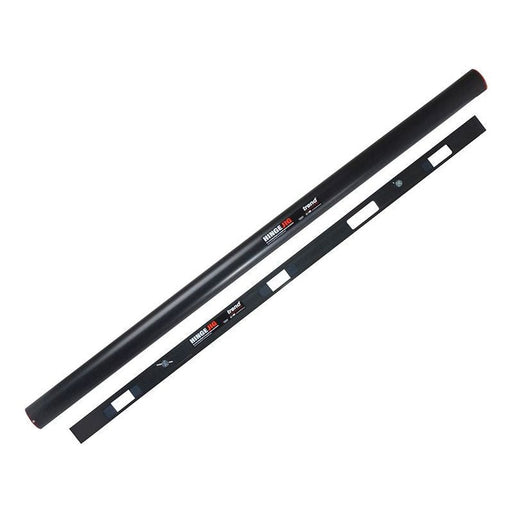

The Trend Hinge Jig is a portable template set designed for recessing hinges in wooden doors and frames. Used on-site and in joinery shops to increase productivity with excellent results. Four apertures for fire door requirements. No need for marking out in the conventional way. Quick and simple to set-up as the hinge is used as the pattern. Clean and accurate recesses are achieved every time. Suitable for timber based doors and square butt hinges. Use with a light duty router with 1/4inch collet. Long reach router cutter required, 12mm diameter with 70mm overall length. Angled position slots to prevent creep. Patent No. GB2285410. Includes: 4 x Apertures, 2 x Bradawls, 1 x 16mm Guide Bush, 1 x T-Handle Hex Key, 1 x 4mm Spacing Gauge and 1 x Plastic Storage Tube. Specification Hinge Sizes Possible: Length Min/Max: 67-127mm (2.5/8-5in).Width Min/Max: 9.5-35mm (3/8-1.3/8in). Door Sizes Possible: Height Min/Max: 1955-2032mm (6ft 5in - 6ft 10in).Thickness Min/Max: 16-44mm.

Read more less

A 2-part hinge jig, portable template set designed for recessing hinges in wooden doors and frames.It is easy-to-use with minimal setting-up time, completing the job both accurately and quickly.Used on-site and in joinery shops to increase productivity with excellent results.Four apertures for fire door requirements.No need for marking out in the conventional way.Quick and simple to set-up as the hinge is used as the pattern.Clean and accurate recesses are achieved every time. Suitable for timber based doors and square butt hinges.Use with a light-duty router with 1/4 inch collet.Long reach router cutter required, 12 mm diameter with 70 mm overall length.Angled position slots to prevent creep. Hinge sizes possible: Length min: 2 5/8 in (67 mm). Length max :5 in (127 mm). Width min :3/8 in (9.5 mm). Width max: 1 3/8 in (35 mm). Door sizes possible: Height min: 6 ft 5 in (1955 mm). Height max: 6 ft 10 in (2100 mm). Thickness min: 5/8 in (16 mm).

Read more less

The world's fastest professional worktop scriber tool. It completes traditional scribing chores with precision, speed and ease. Quick and easy-to-use by remaining stable whilst scribing directly onto work surfaces, flooring, shelves etc. It works by running a wheeled scribe unit along an irregular feature. The sprung pencil in its centre will accurately copy the profile directly onto the workpiece to be installed. It can then be cut and fitted to the surface resulting in a perfect butt! Four sizes of quick-fit track wheels to cope with a variety of situations. Design Reg. No. 3014615. Includes: 1 x pencil, 1 x body, 1 x 29mm wheel, 1 x 50mm wheel, 1 x 70mm wheel, 1 x 90mm wheel.

Read more less

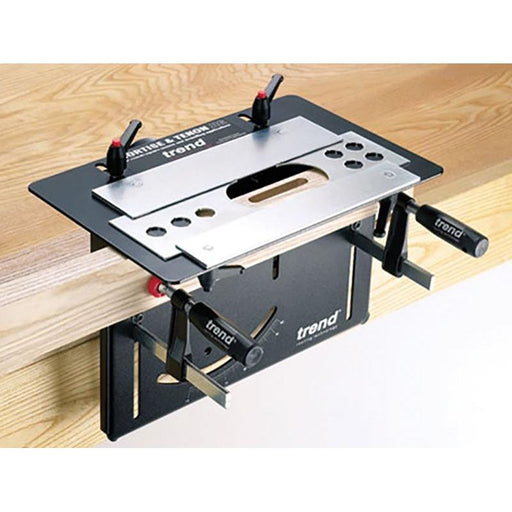

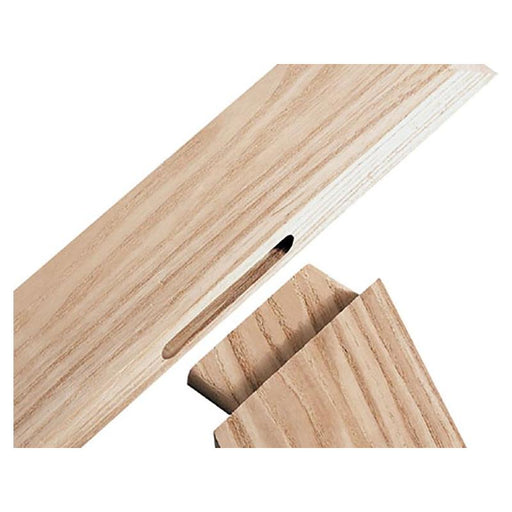

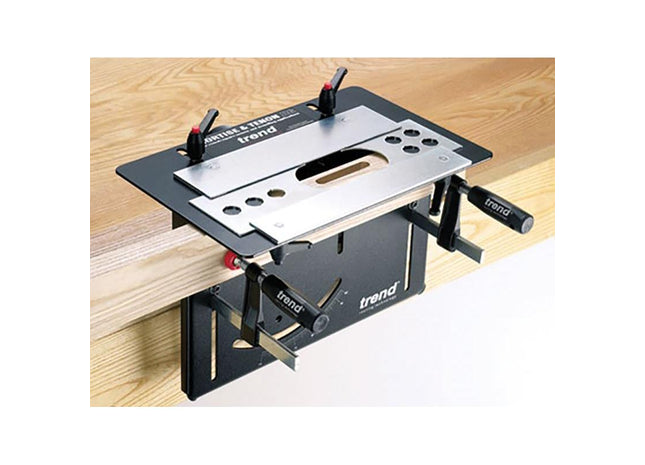

The Trend Mortice & Tenon Jig MT/JIG enables mortice, tenons and dowel joints to be cut with a router. Ideal for cabinets, chairs and table joints. There is a one set-up system for both mortice and tenon giving perfectly fitting joints and is fully adjustable for compound angle joints up to 45º. The reversible templates can be used to produce round and square end tenons and for accurate dowelling applications. It cuts mortice and tenon sizes of 1/4in (6.35mm) to 5/8in (15.9mm). A Unibase may be required for certain makes and models of router. All tenons are cut with a 5/8 inch diameter straight cutter (Ref. C026). The width of the tenon is adjusted by using different guide bush diameters. International PCT Appl N.CNC precision manufactured plates and body. Guide bushes are included but cutters are required. Specification Material Thickness: 12 - 47mm.Tenon Thickness: 4.8 - 16mm.Angle Tilt Compound: -10º to 45º.

Read more less

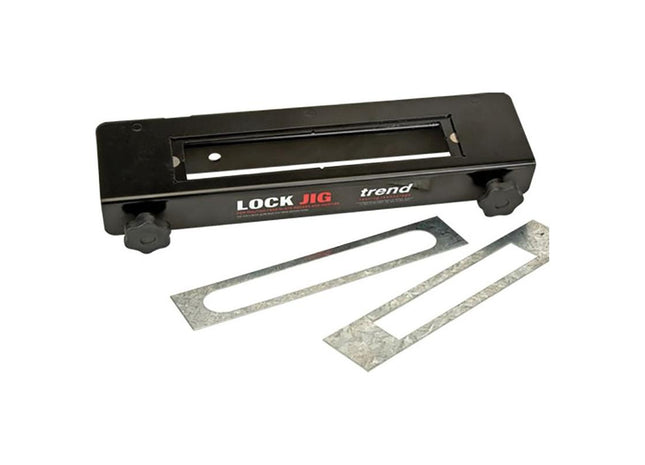

The jig requires a router fitted with a 30mm guide bush and 12mm diameter long reach cutter. For most common sash mortice and dead locks with up to 3in deep mortices and a 7/8in or 1in face plate. Deeper mortices can be achieved with a suitable size of auger bit. Also suits face plate on a 1in mortice latch. NOTE. Use on doors 34 to 58mm thick

Read more less

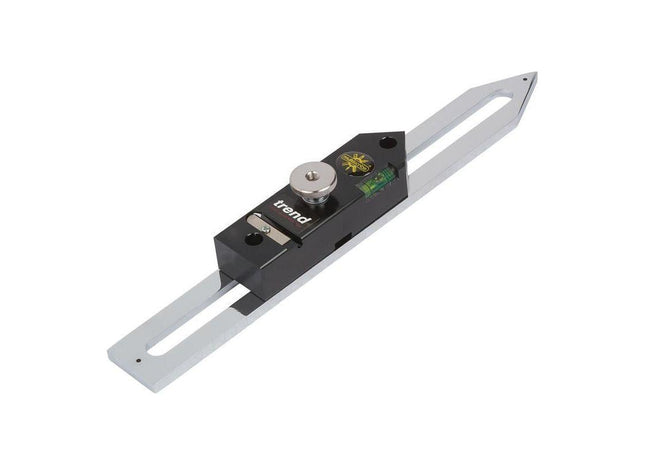

The Trend MS/PRO Multiscribe Profile Matching Tool scribes internal and external curves, marks parallel lines with fast, easy adjustable backset to suit the scribing gap. It also has a square and mitre function for layout work with precise 5mm increments on the blade, ideal for accurate checking and transferring depths of mortices, grooves and rebates. The two accurate pencil positions allow for marking narrow and wider circles and arcs or transferring scribe marks backsets. Other features include: a built in spirit level, plumb bob function and pencil sharpener for increased precision, diversity and usefulness in any situation.

Read more less

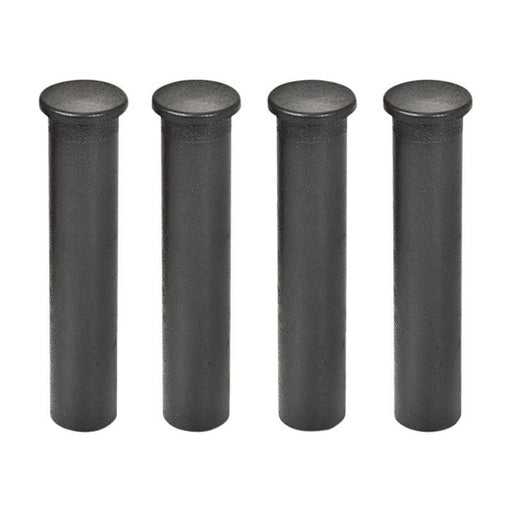

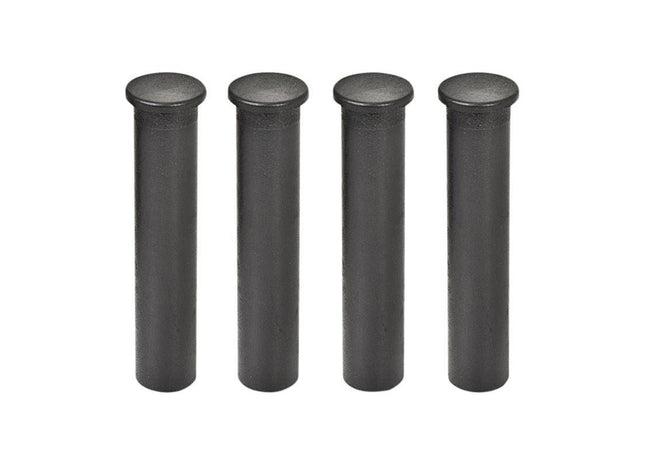

The Trend Kitchen Worktop Jig is a hard-wearing solid laminate, 12mm thick jig that enables cutting both parts of the joint in 15 minutes including setting up. The jig has the following features: Left and right hand corners, 400mm radius peninsular joint, 45° end cut with slight radius, 45° trade corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps. Engraved lines for 65mm bolts and worktop cross-cut. 6 x 10mm diameter ABS plastic pins with tapered shoulders for a tight fit and 3 point pin contact to ensure ease of setting up.This pack contains 4 spare location pins, which are suitable for the KWJ700 and KWJ900 worktop jigs. Made from ABS plastic for strength.

Read more less

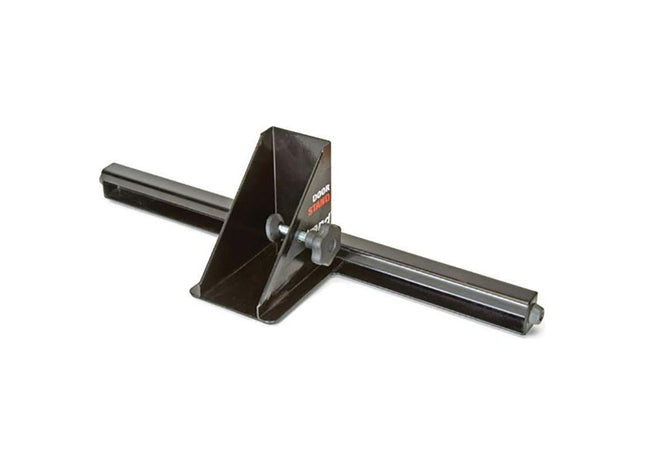

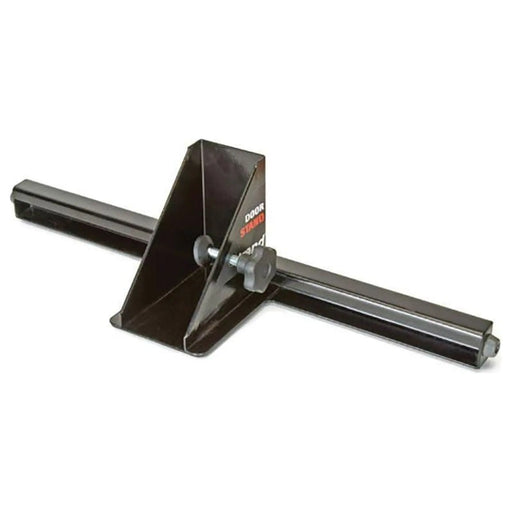

The Trend Door Stand holds the door on its edge while routing hinge recesses and mortices for locks. Holds door securely. Non-scratch base. Adjustable clamp for doors 32 to 55mm thick. Allows door to be tilted back to assist fitting into the frame. Maximum door weight 50kg.

Read more less
