Jigs

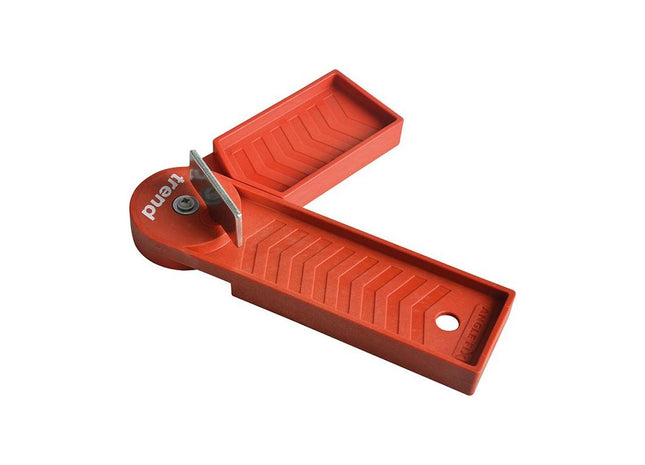

The Trend Anglefix is a must have accessory for quick, accurate mitre saw setup when cutting mitres. It is simple to use, the desired angle is taken by wrapping around the desired internal or external corner.The central metal tab automatically bisects the angle taken for fast setting without any measurements or additional tools. This anglefix is ideal for setting mitre angles for skirting, architrave, dado rails, picture frames, moulding and more. It makes setting angles simplified, speeding up mitre work for trade and hobbyists alike.

Read more less

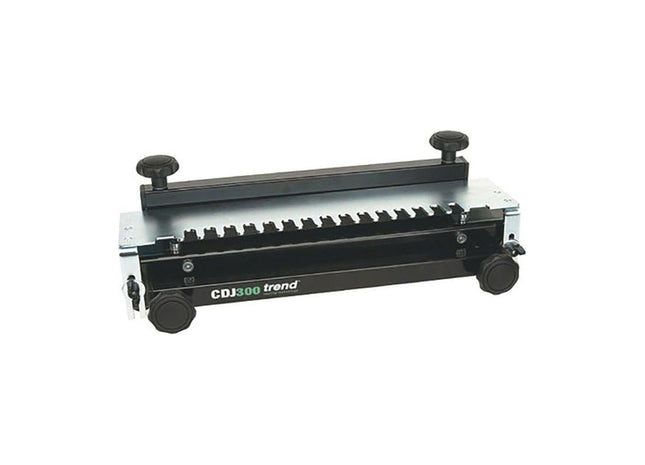

The Trend CDJ300 Craft Dovetail Jig is accurate and easy-to-use for a variety of elegant dovetail joints. It cuts 12.7mm (1/2in) wide half blind dovetails or rebated dovetails in one operation.The CDJ300 is a precision made laser cut zinc plated steel template with a packing piece. Please note a unibase and fine height adjuster may be required for certain makes of router.Supplied with 1 x 1/4in shank TCT 104º Dovetail Cutter and 1 x 15.8mm Guide Bush. Specifications:Rating: Craftsman.Dovetail Size: 12.7mm.Workpiece Width Max: 300mm.Workpiece Thickness Min: 12mm.Workpiece Thickness Max: 25mm.Guide Bush Size: 15.8mm.Router Base Diameter Max: 180mm.

Read more less

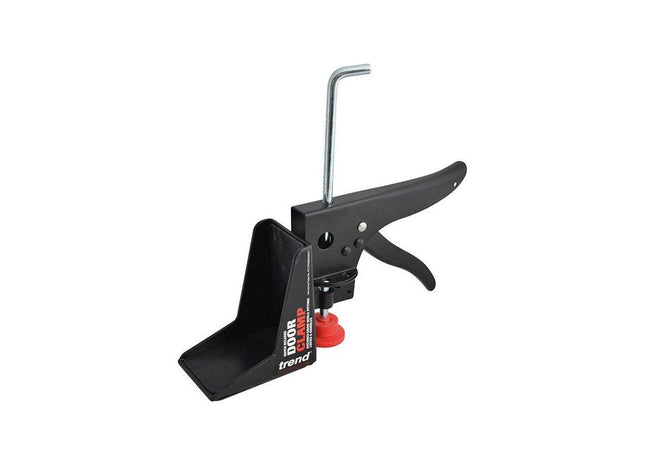

Holds door while drilling and fitting locks. No set-up time needed. No more searching and alternative door stops. Padded to prevent door and floor damage. For doors up to 55 mm thick. Patent No. PCT/EP2006/006072.

Read more less

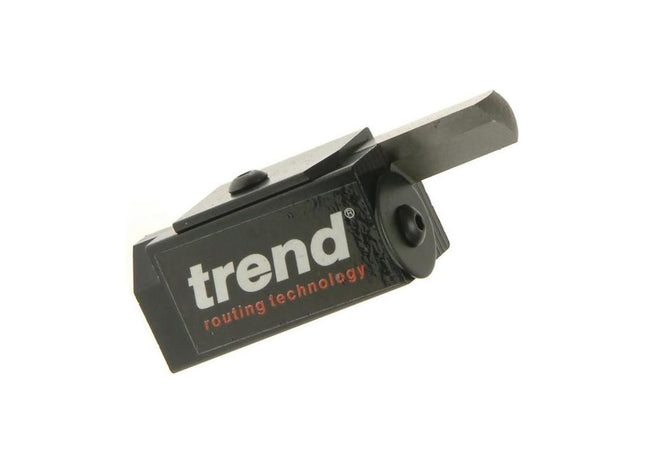

The Trend Corner Chisel is used to square up rounded corners on hinge and lock recesses. Fitted with a high-speed steel (HSS) anvil. Use with a Hammer. The chisel can be resharpened. Ideal for use with hinge and lock jigs.

Read more less

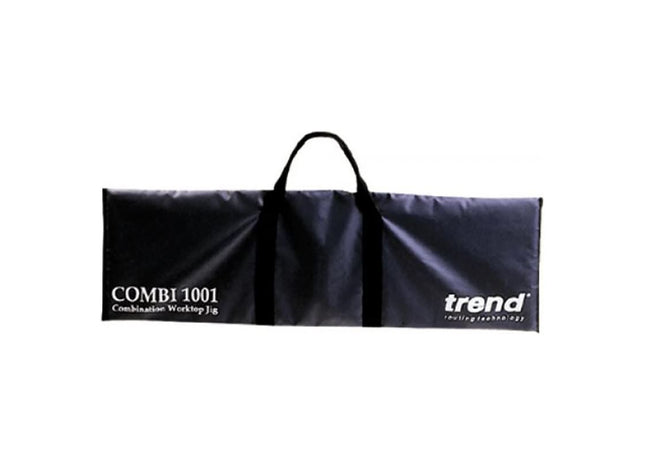

Hard-wearing carry case for protecting and carrying the Trend COMBI1001, COMBI1002, KWJ700 and KWJ900.

Read more less

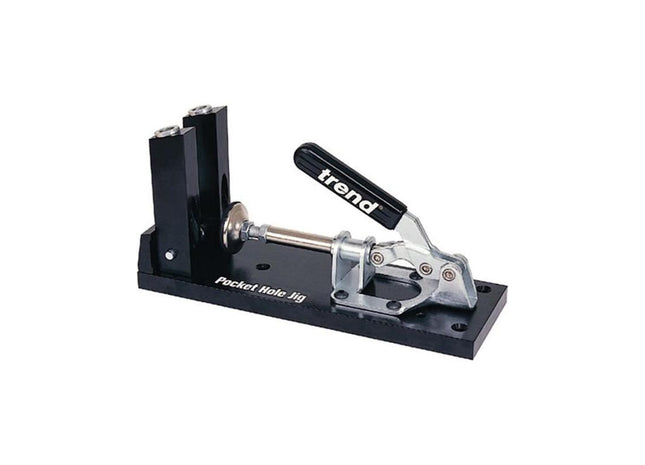

The Trend PH/JIG Pocket Hole Jig is great for fast and accurate joining of timber and plywood, giving strong instant joints. Solid hardened bushes with a variable pitch of 29 to 63mm. Use on timber, MDF, plywood and blockboard. It allows a variety of joints to be created individually. Uses square drive self-tapping screws. Workpiece can be handled immediately after gluing and screwing, creating time-saving benefits. No clamps required.The Trend PH/JIG Pocket Hole Jig is supplied with: 100 x Dome Head Screws, 1 x Face Clamp, 1 x HSS Drill Bit With Collar, 1 x 75mm Square Drive Bit, 1 x 150mm Square Drive Bit.

Read more less

The Trend PH/JIG Pocket Hole Jig is great for fast and accurate joining of timber and plywood, giving strong instant joints. Solid hardened bushes with a variable pitch of 29 to 63mm. Use on timber, MDF, plywood and blockboard. It allows a variety of joints to be created individually. Uses square drive self-tapping screws. Workpiece can be handled immediately after gluing and screwing, creating time-saving benefits. No clamps required.This replacement stepped drill bit for the Pocket Hole Jig has a diameter of 9.5mm (3/8in).

Read more less

The Trend PH/JIG/BS Single Pocket Hole Jig is for fast and accurate joining of solid timber and plywood giving strong instant joints in single or multiple fixing positions. It can help to build cabinets, furniture and small joinery projects with ease. The hardened drilling sleeves provide accurate, consistent pockets. There is also a handy built-in drill depth gauge that can be reversed for new or repair work. Works with timber thicknesses from 12mm to 38mm. Portable and adaptable. Supplied with: 1 x Pack of Assorted Screws, 1 x 150mm Square Drive Bit and 1 x HSS Drill Bit with Collar.

Read more less

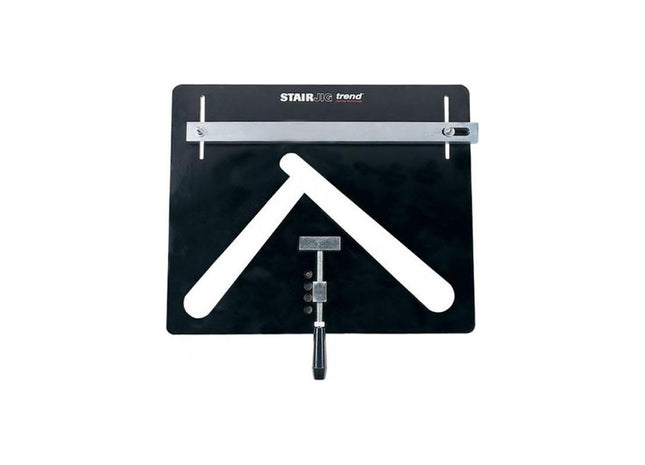

This Trend STAIR/AStaircase Jig is a template jig with well proven means of routing out stair housings quickly and accurately. It is constructed from hard wearing compact grade high pressure laminate and includes a reversible fence for exact matching of stair strings and fully adjustable nosing piece. It has a built-in heavy duty front clamp for quick clamping for each trench.It is adjustable to suit private and common stair angle pitches and can be used with all heavy-duty routers over 1600 watts. The sub-base is pre-drilled to suit Trend/DeWalt/Elu 1/2-inch routers, for other makes the sub-base will have to be redrilled. Kit includes:-1 x Adjustable reversible clamp.1 x Reversible clamp bar.1 x Sub-base.1 x Nose piece.1 x Line up pin and bush.2 x Spanners.Specifications: Tread Thickness: 22-32 mm.Slider Diameter: 30 mm.Nosing Adjustment: 16-19 mm.Length: 585 mm.Height: 485 mm.Width: 12.5 mm.Weight: 6.17kg.

Read more less

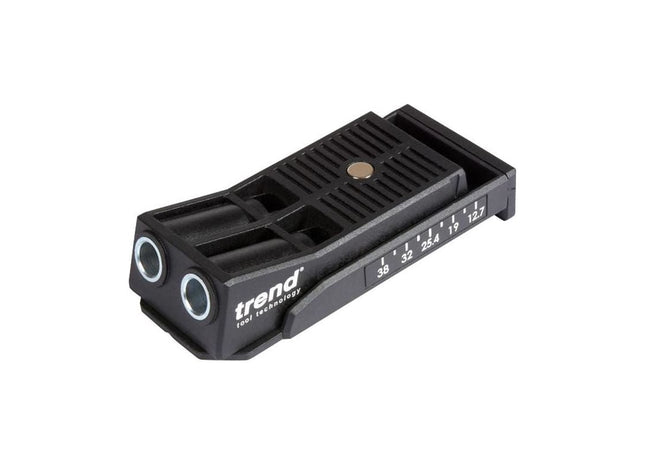

Trend PH/JIG/C Twin Pocket Hole Jig for new projects, strengthening and repair work in materials from 12.7mm to 38mm thick. With hardened, full-length drill guides for precision pockets and a long life span. A magnetic clamp plate aids location of the jig when clamping. Fast setup with easy adjustments for different component sizes. It can be easily relocated across any material width for infinite pocket hole positioning. The quick set drill and timber setting sliding set up gauge easily set the correct drilling depth and jig position for different material thicknesses. Compact and portable, it fits easily into a pocket or tool pouch. Ideal for jointing in hard and softwoods and sheet materials. Trend Snappy chuck compatible. Supplied with a high-quality HSS stepped drill, No.2 Square Drive bit, both with quick-change hex shanks, and a selection of screws.

Read more less

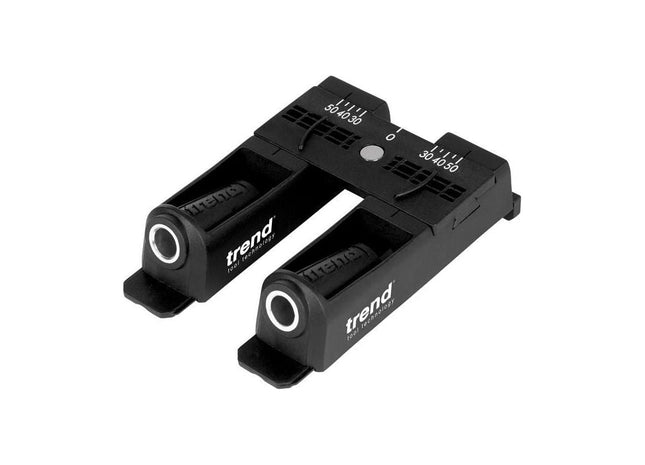

Trend PH/JIG/BK 3-in-1 Pocket Hole Jig for fast and accurate joining of timber and plywood, giving strong instant joints. Multi-function design for twin hole or single hole pockets, perfect for wide or for narrow stock components. With reversible depth gauges, ideal for new projects and repair work. Hardened drilling sleeves for accurate, consistent pockets. Works with timber 12.7mm to 38mm thick. Portable and adaptable for multiple jointing styles and applications with tool-free, fast and easy set up. Build cabinets, furniture and small joinery projects with ease. Supplied with: 50 x Assorted Screws, 1 x HSS Drill Bit with Collar, 1 x 150mm Square Drive Bit, 1 x Adaptor Plate, 1 x Hex Key 3mm A/F and 1 x Carry Case. Specification: Timber Thicknesses: 12.7-38mmHole Pitch: 28-50mm

Read more less

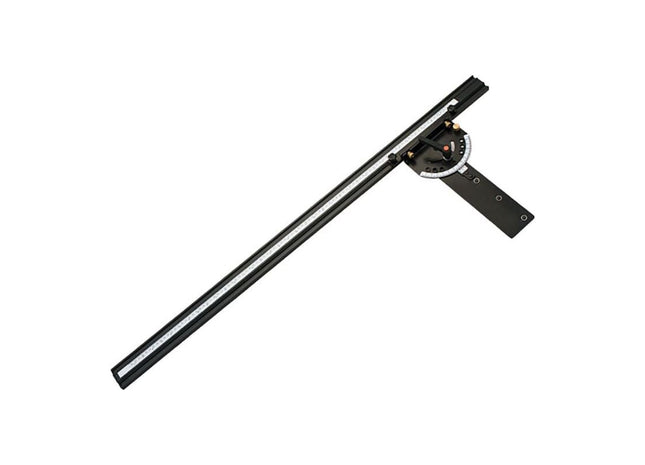

The Trend VJSAG36 is an adjustable angle guide to allow grooving with the router, or crosscutting with a circular saw. It has an adjustable angle range from 25º to 155º and preset angle for 30º, 45º, 60º, 90º, 120º, 135º and 150º. The router working length at 90º is 915mm (36 inch), the circular saw working length at 90º is 780mm (30 3/4 inch). It has an angle tolerance ± 0.2º with zeroing facility, adjustable position alloy extrusion with scale and requires three clamps. Will accept accessory friction clamps Ref. VJS/CK or VJS/CK/L.

Read more less
