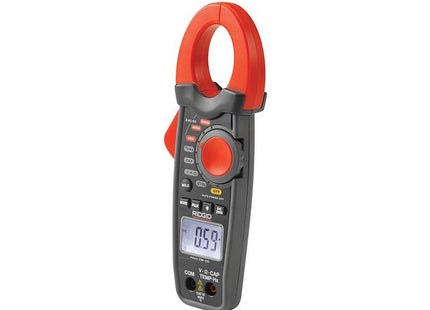

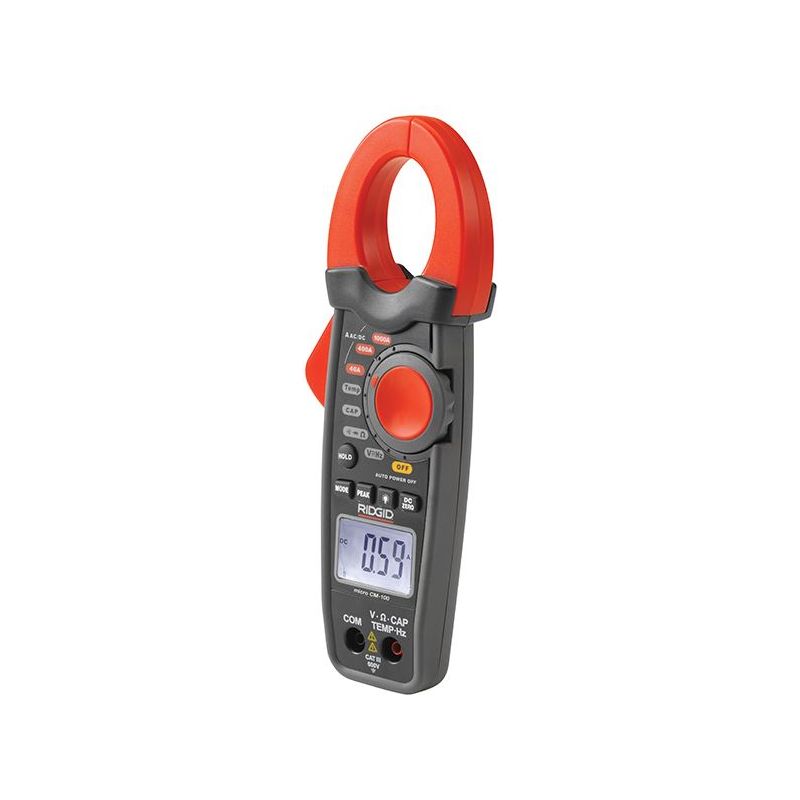

Ridgid CM-100 Micro Clamp Meter 37428

Description

The Ridgid CM-100 Micro Clamp Meter is a true RMS and AutoRanging digital clamp meter with a large capacity and measuring range. It can clamp around cables up to 30mm O.D. and measure current up to 1,000A AC/DC.

The clamp meter can also be used as a multimeter for 8 other functions, and will provide clear and accurate readings on its large backlit LCD.

The slim and double-moulded design provides easy one-handed operation and can be conveniently used in confined cable compartments.

Supplied with soft carrying case, test leads, Type K temperature probe and 9V battery.

Functions and Range:

Voltage AC/DC: 400mV - 600V.
Current AC/DC: 40A - 1,000A.
Resistance: 400 - 40M.
Capacitance: 4nF - 40mF.
Frequency: Up to 4kHz.
Diode Test: 1.5V.
Continuity Test: 35.
Temperature: -40° - 1,000°C.

Specifications:

Power Source: 9V battery (included).
Display: 4,000 Count backlit LCD.
Clamp size: Max. 30mm O.D. cable.
Overload protection: CAT III 600V.
Polarity Indication: Yes, automatic.
Auto Power-Off. Yes, after 20 minutes.
AutoRanging: Yes.
True RMS: Yes.
Data and Peak Hold: Yes.
Bar Graph Display: Yes.

Ridgid CM-100 Micro Clamp Meter 37428

Product form

New Website Coming Soon!

We're working hard to bring you an improved shopping experience. In the meantime, we're here to help!

📞 Need This Product?

Contact us at 01604 720272
or email sales@rockbottomnorthampton.co.uk

🏪 Local Pick-Up Available
2 Ashburnham Road NN1 4QY
⚠️ Please contact us first before visiting the store

⭐ Thanks for bearing with us during this exciting transition!

The Ridgid CM-100 Micro Clamp Meter is a true RMS and AutoRanging digital clamp meter with a large capacity and... Read more

SKU: RID37428-TOOLBANK
Barcode: 95691374288

    £149.99 Incl. VAT

    Description

    The Ridgid CM-100 Micro Clamp Meter is a true RMS and AutoRanging digital clamp meter with a large capacity and measuring range. It can clamp around cables up to 30mm O.D. and measure current up to 1,000A AC/DC.

    The clamp meter can also be used as a multimeter for 8 other functions, and will provide clear and accurate readings on its large backlit LCD.

    The slim and double-moulded design provides easy one-handed operation and can be conveniently used in confined cable compartments.

    Supplied with soft carrying case, test leads, Type K temperature probe and 9V battery.

    Functions and Range:

    Voltage AC/DC: 400mV - 600V.
    Current AC/DC: 40A - 1,000A.
    Resistance: 400 - 40M.
    Capacitance: 4nF - 40mF.
    Frequency: Up to 4kHz.
    Diode Test: 1.5V.
    Continuity Test: 35.
    Temperature: -40° - 1,000°C.

    Specifications:

    Power Source: 9V battery (included).
    Display: 4,000 Count backlit LCD.
    Clamp size: Max. 30mm O.D. cable.
    Overload protection: CAT III 600V.
    Polarity Indication: Yes, automatic.
    Auto Power-Off. Yes, after 20 minutes.
    AutoRanging: Yes.
    True RMS: Yes.
    Data and Peak Hold: Yes.
    Bar Graph Display: Yes.
