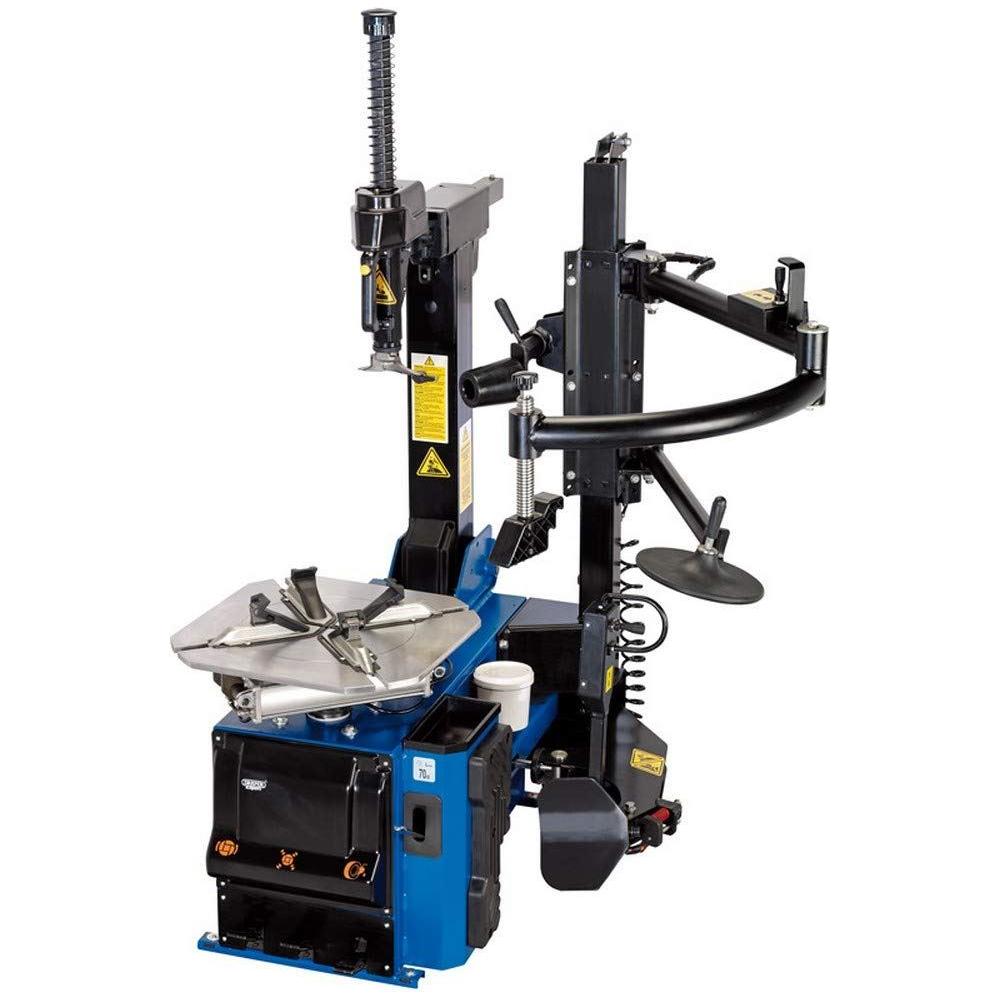

Draper Semi Automatic Tyre Changer with Assist Arm 78612

Description

Expert Quality, semi-automatic tyre changer, capable of removing and replacing tyres on wheels up to 26". Fitted with an assist arm (also known as a third arm) to aid the user when changing low profile and run flat tyres. The fully motorised turntable, pneumatically operated clamping jaws, powerful pneumatic bead breaker and tilt column enables the changing of low profile and run flat tyres quickly and easily. The self-centering four-jaw chuck, controlled by two clamping cylinders, always ensures wheel rims are correctly clamped. Alloy rims are treated particularly gently as the mounting head is provided with plastic protectors. The bead breaker is attached with a large anti-skid rubber pad, which preserves the tyres and rims. The machine is operated from a standard 13amp 3 pin plug. Supplied with the following accessories: tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors and inflation gun and air hose.

Specifications

Motor 1.1KW
Power supply 230V
Bead breaker force 2100kg
Pneumatic supply 90 - 115psi (6-8BAR)
Suitable for use on wheel width 3" to 18"
For rim dia. (internal locking) 13" to 26"
For rim dia. (external locking) 12" to 25"
Max wheel diameter 45"
Dimensions 1900 x 1950 x 1650mm
Weight 350kg

Draper Semi Automatic Tyre Changer with Assist Arm 78612

Product form

New Website Coming Soon!

We're working hard to bring you an improved shopping experience. In the meantime, we're here to help!

📞 Need This Product?

Contact us at 01604 720272
or email sales@rockbottomnorthampton.co.uk

🏪 Local Pick-Up Available
2 Ashburnham Road NN1 4QY
⚠️ Please contact us first before visiting the store

⭐ Thanks for bearing with us during this exciting transition!

Expert Quality, semi-automatic tyre changer, capable of removing and replacing tyres on wheels up to 26". Fitted with an assist... Read more

SKU: 78612-DRA
Barcode: 5010559786121

    £3,322.99 Incl. VAT

    Description

    Expert Quality, semi-automatic tyre changer, capable of removing and replacing tyres on wheels up to 26". Fitted with an assist arm (also known as a third arm) to aid the user when changing low profile and run flat tyres. The fully motorised turntable, pneumatically operated clamping jaws, powerful pneumatic bead breaker and tilt column enables the changing of low profile and run flat tyres quickly and easily. The self-centering four-jaw chuck, controlled by two clamping cylinders, always ensures wheel rims are correctly clamped. Alloy rims are treated particularly gently as the mounting head is provided with plastic protectors. The bead breaker is attached with a large anti-skid rubber pad, which preserves the tyres and rims. The machine is operated from a standard 13amp 3 pin plug. Supplied with the following accessories: tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors and inflation gun and air hose.

    Specifications

    Motor 1.1KW
    Power supply 230V
    Bead breaker force 2100kg
    Pneumatic supply 90 - 115psi (6-8BAR)
    Suitable for use on wheel width 3" to 18"
    For rim dia. (internal locking) 13" to 26"
    For rim dia. (external locking) 12" to 25"
    Max wheel diameter 45"
    Dimensions 1900 x 1950 x 1650mm
    Weight 350kg

    • The image is for illustration purposes only

    Reviews

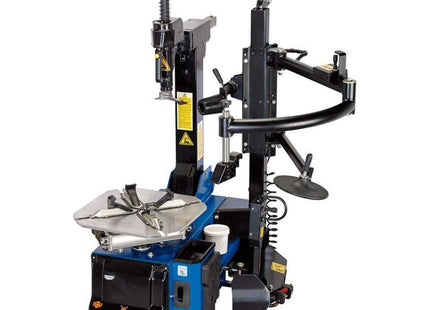

    Draper Semi Automatic Tyre Changer with Assist Arm 78612 Draper - Town Tools
