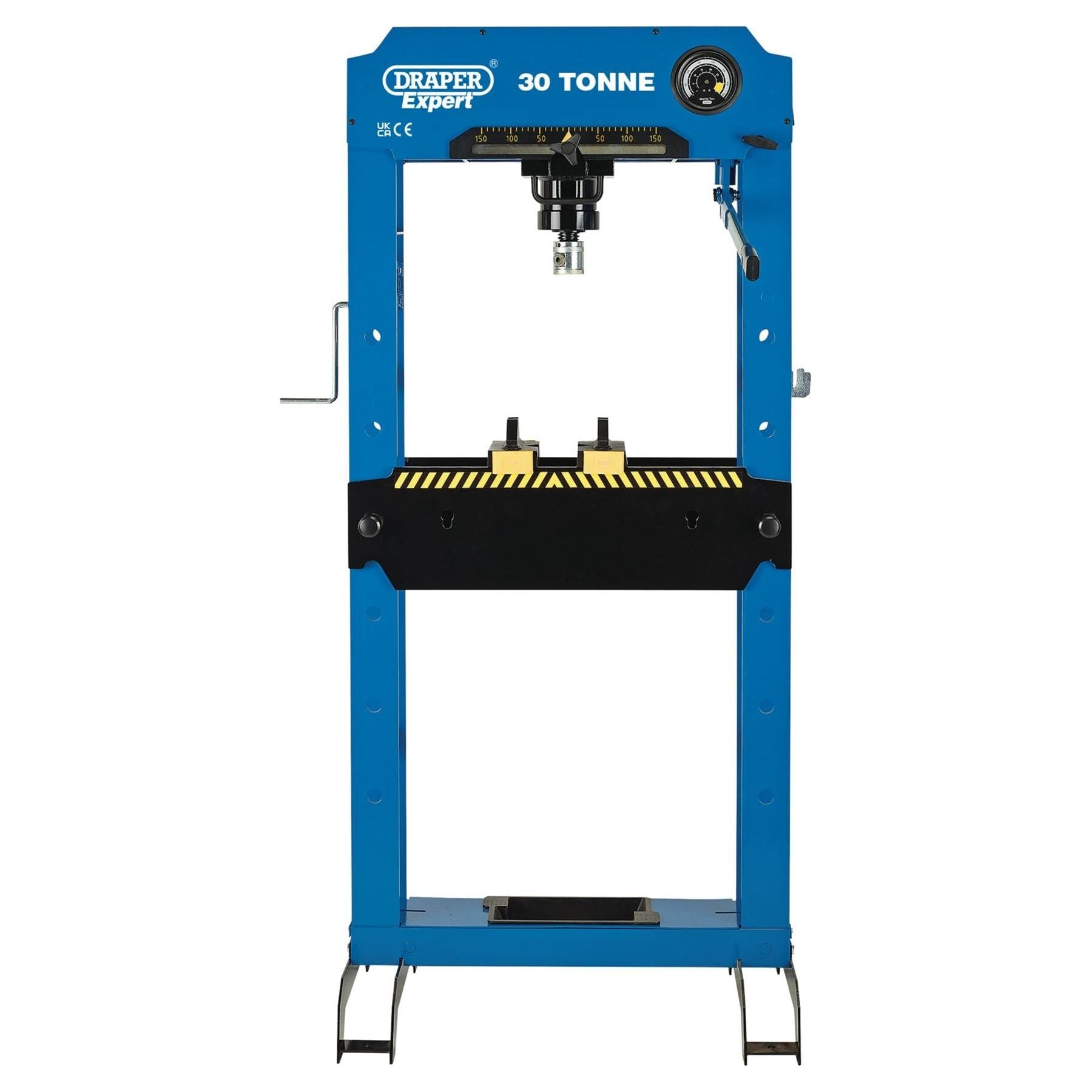

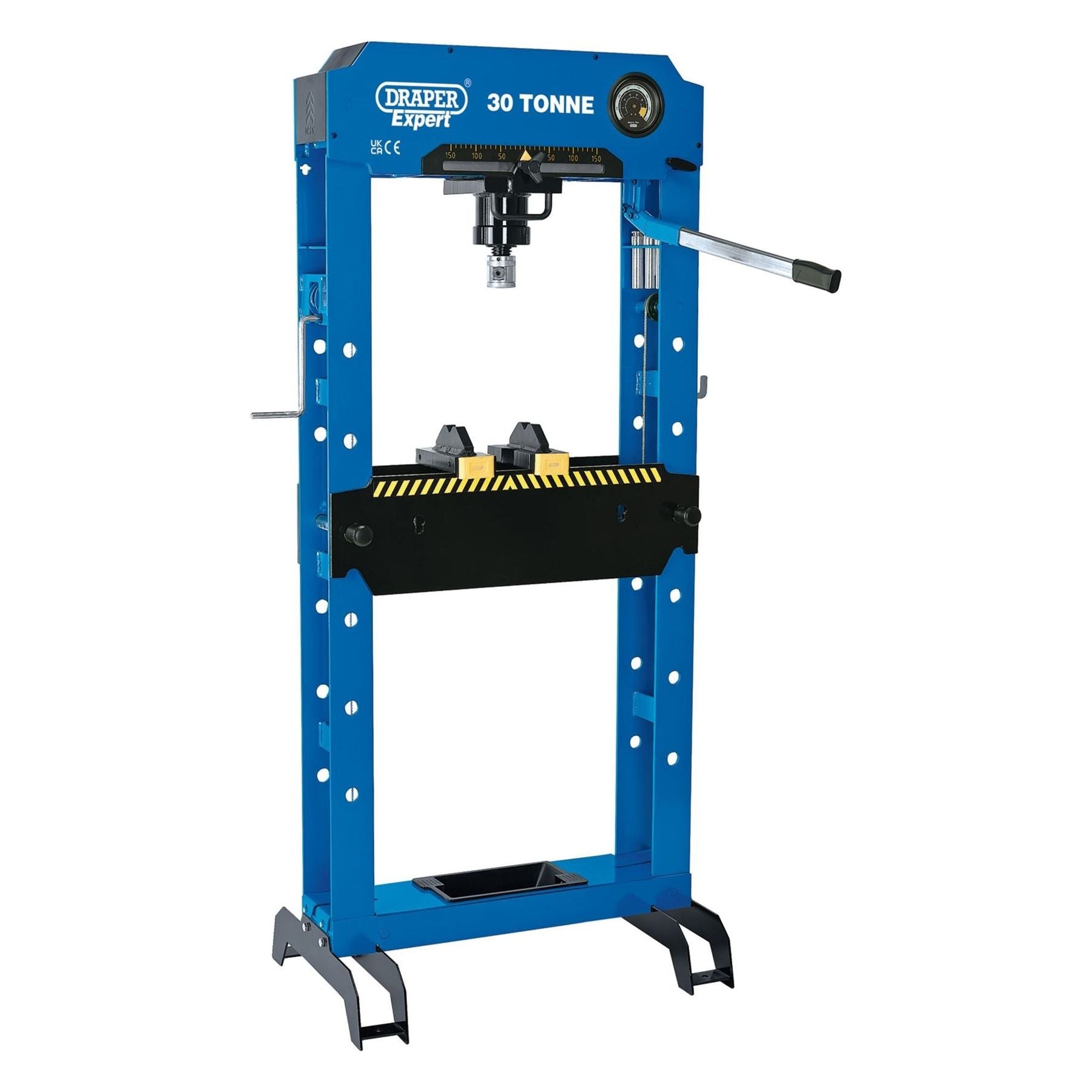

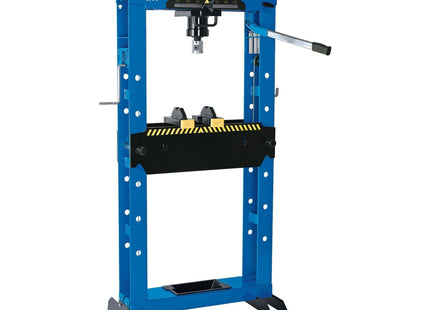

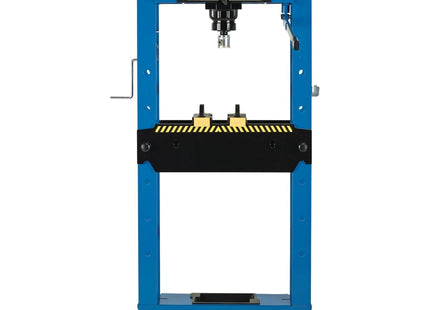

Robust hydraulic 30 tonne floor press with sliding ram for precise pressing. Fitted with hand pump for manual hydraulic operation. There are 12 adjustable table heights with a working range between 25-850mm. The table can be lifted or lowered using a winch. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.
Contents
1 x Draper Expert Hydraulic Floor Press, 30 Tonne
Specifications
Capacity: 30 Tonne
Gauge diameter: 100mm
Ram stroke: 220mm
Ram scale: 145mm - 0mm - 145mm
Ram diameter: 50mm
Table height: 25-850mm
Press pin capacity: 2-15 Tonnes
Overall height: 1800mm
Frame dimensions: (H) 1685 x (W) 600 x (D) 148mm
Weight (net): 157kg
