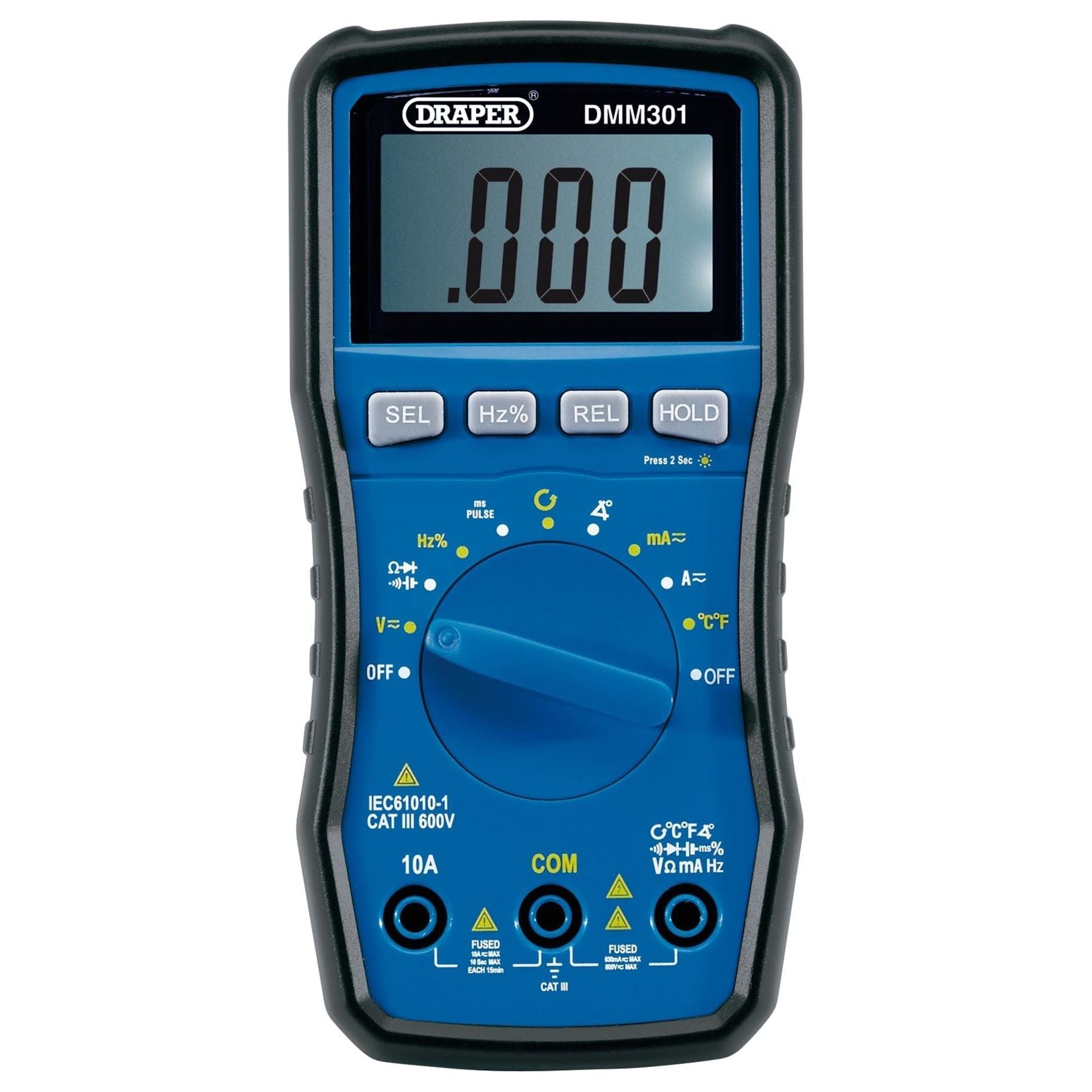

Auto and manual ranging multimeter capable of voltage, current, resistance, diode, temperature and continuity testing. Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features. Supplied with test leads, temp probe, inductive clamp, case and 2x AAA batteries.
Specifications
AC Current: 60mA/600mA/6A/10A
AC Voltage: 6V/60V/600V
Automatic Power Off: Yes
Battery: PP3
Capacitance: 40nF/400nF/4μF/40μF/400μF/4000μF
DC Current: 60mA/600mA/6A/10A
DC Voltage: 6V/60V/600V
Dimensions: 184mm x 186mm x 72mm
Diode on/off Test: Yes
Dwell: 4CYL, 6CYL, 8CYL
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Resistance (Ohms): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold: Yes
TACH: RPM4 120-20000, RPM2 60-20000
Temperature Range: -20℃ - 1000℃/-4℉ - 1832℉
Weight: 507g (approx.)
