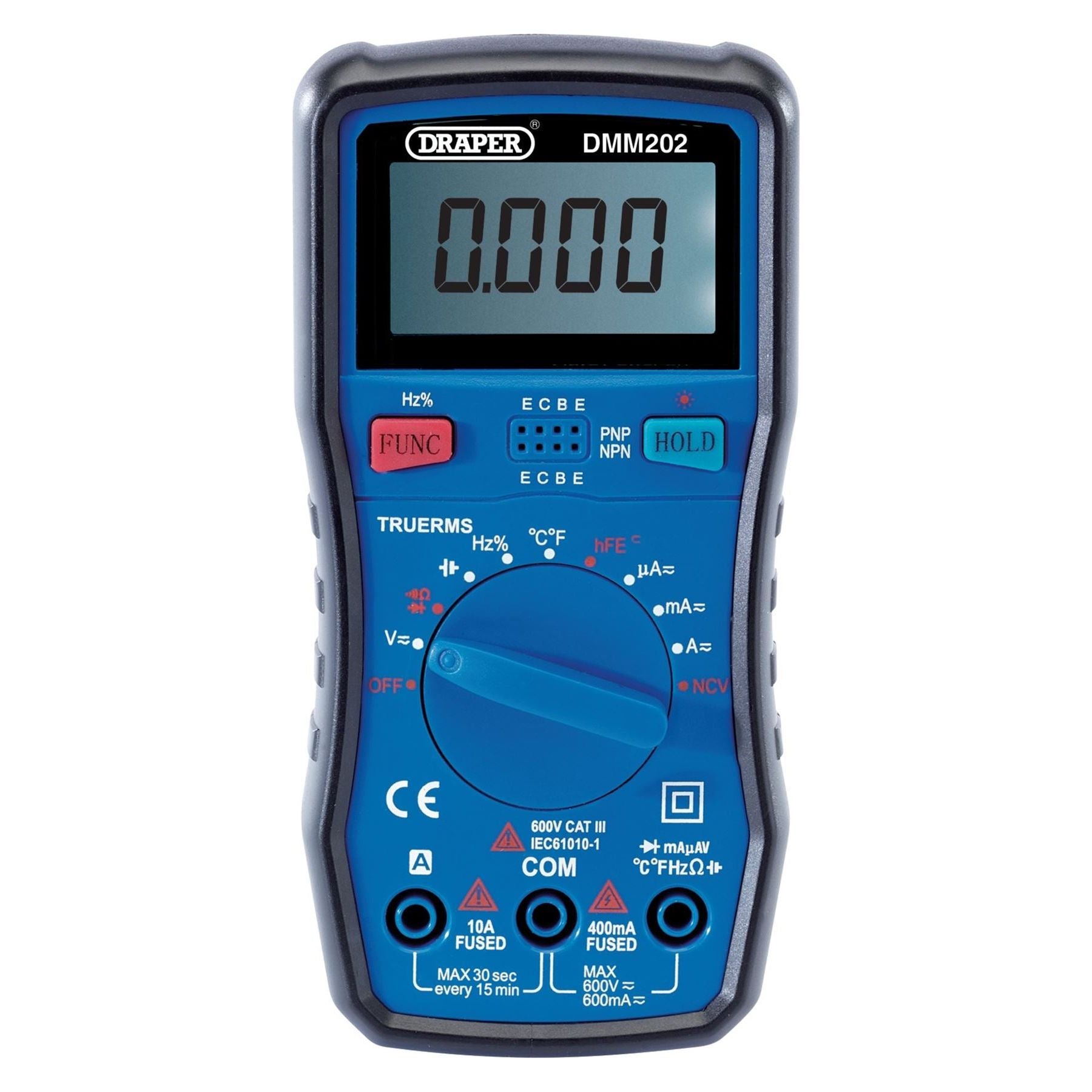

Auto ranging achieving TRMS 5999 counts and voltage, current, hEF, continuity, resistance, temperature, diode and non contact voltage testing. Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features. Supplied with test leads, temp probe and 1 x 6F22 9V battery.
Specifications
AC Current: 600µA/6000uA/60mA/600mA/6A/10A
AC Voltage: 6V/60V/600V
Automatic Power Off: Yes
Battery: 6F22 9V
Capacitance: 10nF/100nF/1μF/10μF/100μF/1000mF/10mF/100mF
DC Current: 600µA/6000uA/60mA/600mA/6A/10A
DC Voltage: 600mV/6V/60V/600V
Dimensions: 172mm x 174mm x 50mm
Diode on/off Test: Yes
Dwell: N/A
Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
Resistance (Ohms): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature Range: -50℃ - 1000℃/-58℉ - 1832℉
Weight: 361g (approx.)
