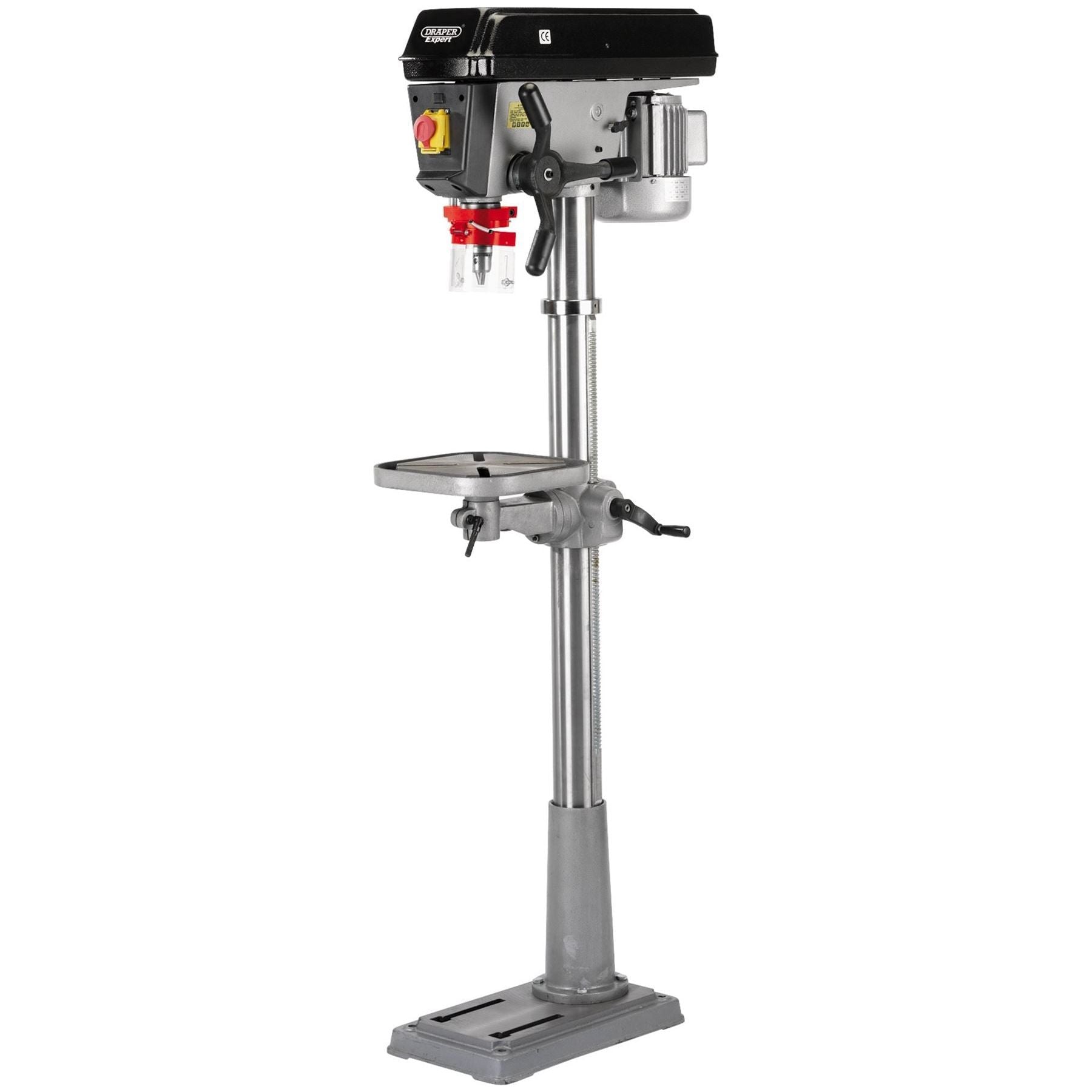

Heavy duty 16 speed floor standing drill with a 19mm drilling capacity. Designed for engineering and fabrication workshops. The square table is fitted with a heavy duty smoothly operated rack and pinion for easy adjustment. Fitted with a No-Volt safety release switch, depth stop and chuck guard. Manufactured with an Aluminium motor casing and lockable pulley cover. Supplied with a BS approved non-rewireable moulded plug and 1.8m (approx.) cable.
Specifications
Drilling capacity: 19mm
Chuck capacity: 3-16mm
Spindle taper: MT2
Speeds: 16 (120-3000r/min)
Spindle travel: 80mm
Column diameter: 80mm
Collar diameter: 60mm
Table size: 290 x 290mm
Base size: 460 x 275mm
Throat depth: 178mm
Height: 1650mm
Weight: 78kg
