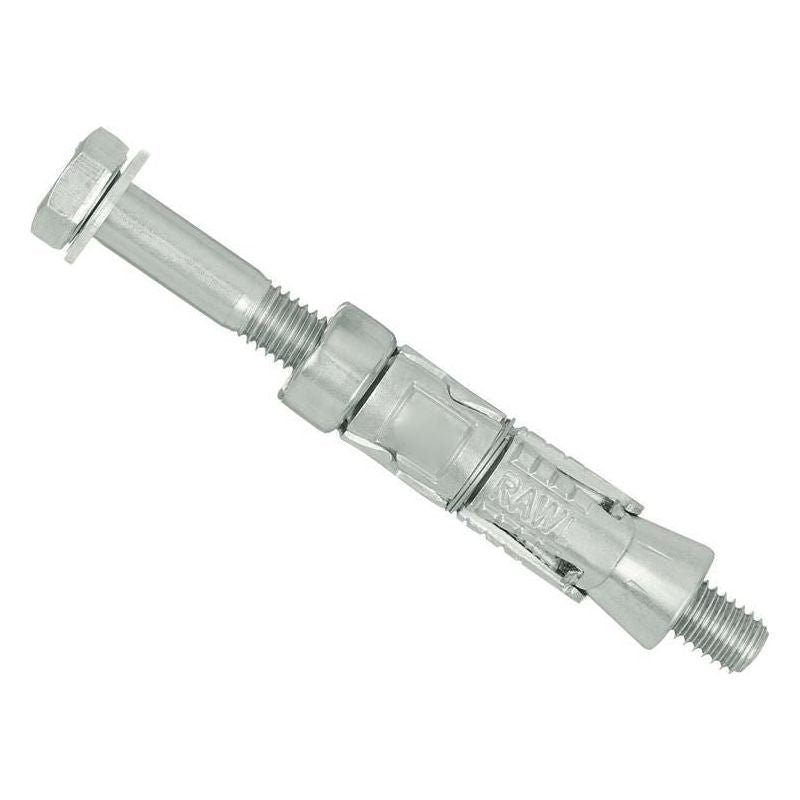

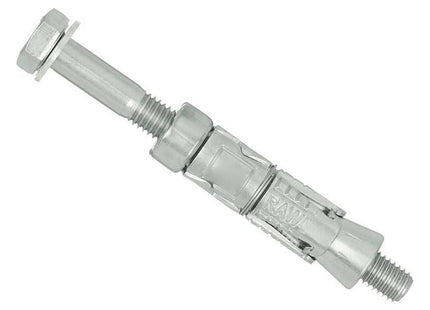

Rawlplug Rawlbolt® Loose Bolt M10/75L (Bag 5)

Description

The Rawlplug Rawlbolt® Loose Bolt is suitable for use in cracked and non-cracked concrete (ETA option 1), hollowcore slabs, flooring blocks and ceramics. Recommended for applications requiring fire resistance.

With a three-piece expanding sleeve of maximum expansion to provide optimal load and safety of use in any substrate.

The world's most popular all-purpose expanding shield anchor, loose bolt version.

These Rawlplug Rawlbolt® Loose Bolts have the following specification:

Anchor
Diameter: 10mm
External Diameter: 16mm
Length: 140mm

Fixture
Max. Thickness: 75mm
Hole Diameter: 11mm

Hole Diameter in Substrate: 16mm
Installation Torque: 27
Wrench Size: 17
Min. Hole Depth in Substrate: 65mm
Min. Installation Depth: 60mm
Min. Substrate Thickness: 100mm
Min. Spacing: 50mm
Min. Edge Distance: 75mm

Pack Quantity: Bag of 5

Rawlplug Rawlbolt® Loose Bolt M10/75L (Bag 5)

Product form

New Website Coming Soon!

We're working hard to bring you an improved shopping experience. In the meantime, we're here to help!

📞 Need This Product?

Contact us at 01604 720272
or email sales@rockbottomnorthampton.co.uk

🏪 Local Pick-Up Available
2 Ashburnham Road NN1 4QY
⚠️ Please contact us first before visiting the store

⭐ Thanks for bearing with us during this exciting transition!

The Rawlplug Rawlbolt® Loose Bolt is suitable for use in cracked and non-cracked concrete (ETA option 1), hollowcore slabs, flooring... Read more

SKU: RAWM1075LB-TOOLBANK
Barcode: 5906675094311

    £10.99 Incl. VAT

    Description

    The Rawlplug Rawlbolt® Loose Bolt is suitable for use in cracked and non-cracked concrete (ETA option 1), hollowcore slabs, flooring blocks and ceramics. Recommended for applications requiring fire resistance.

    With a three-piece expanding sleeve of maximum expansion to provide optimal load and safety of use in any substrate.

    The world's most popular all-purpose expanding shield anchor, loose bolt version.

    These Rawlplug Rawlbolt® Loose Bolts have the following specification:

    Anchor
    Diameter: 10mm
    External Diameter: 16mm
    Length: 140mm

    Fixture
    Max. Thickness: 75mm
    Hole Diameter: 11mm

    Hole Diameter in Substrate: 16mm
    Installation Torque: 27
    Wrench Size: 17
    Min. Hole Depth in Substrate: 65mm
    Min. Installation Depth: 60mm
    Min. Substrate Thickness: 100mm
    Min. Spacing: 50mm
    Min. Edge Distance: 75mm

    Pack Quantity: Bag of 5
