Light duty restraint straps can be used for vertical restraint applications, such as holding down wall plates to masonry.

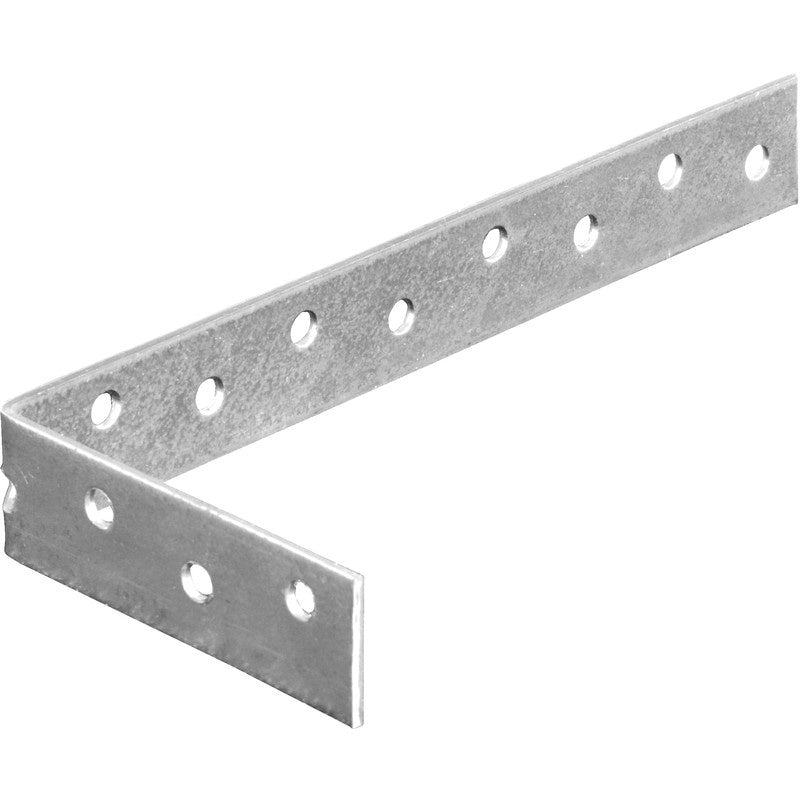

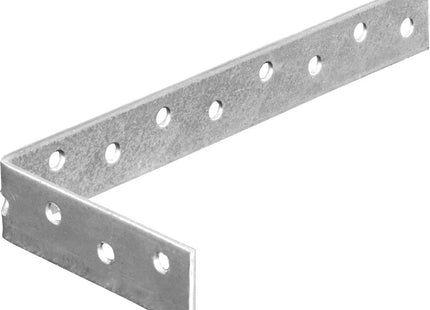

30mm x 2.5mm multi-holed straps supplied in 100mm increments. 6mm holes at 25mm offset centres. Available straight, bent or twisted or in combinations as required in both galvanised (LDMH) and stainless steel (SLDMH).
Standard product includes one bend or twist. Additional bends/ twists / fishtails charged extra. Increments of less than 100mm will be charged at the full rate e.g. 1050mm charged at 1100mm rate.
Designed in accordance with The Building Regulations, BS5268 Part 3 and other building standards for vertical and horizontal restraint and tested to BS EN845-1.
Fixing – Restraint straps should be fixed using either 50mm long no. 12 woodscrews (using wall plugs in masonry for vertical restraint) or 75mm x 4.0mm diameter galvanised nails into timber. Stainless steel screws or nails must be used when fixing stainless steel straps.
Dimensions – Thickness 2.3mm, Width 27mm, Length 100mm increments from 100mm to 6000mm.
Load Bearing Capacity – 4 kN.
