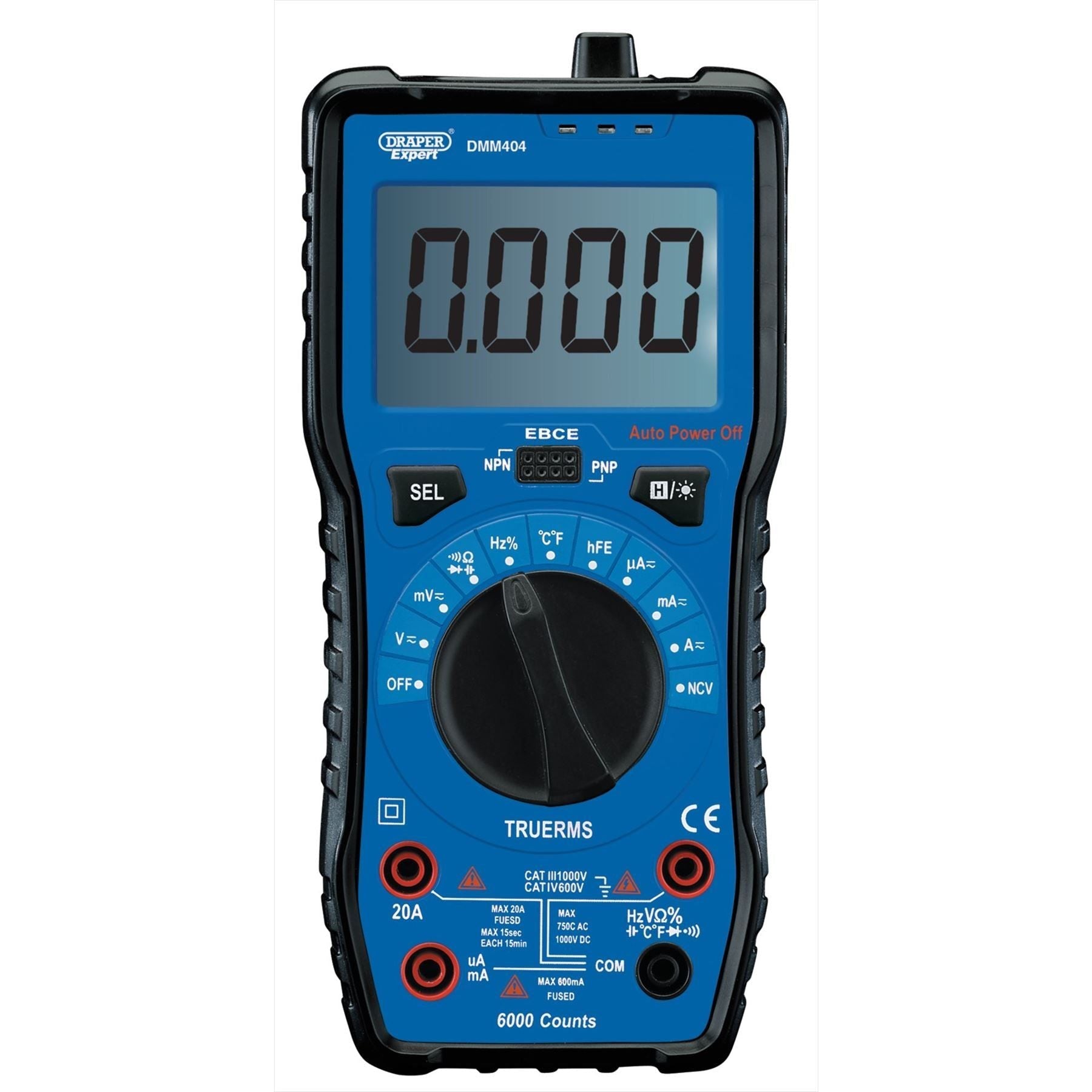

Expert Quality, auto-ranging CAT IV multimeter. Equipped with a high-performance MCU processor for more accurate measurements. Capable of DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, frequency, duty ratio, diode on/off test, symbol unit data hold and automatic power-off functions. Fitted with a large LCD backlit display screen, an NCV (Non - contact voltage) sensor and inspection light. An essential tool for electrical and industrial applications, especially useful for electricians, maintenance engineers, construction workers and electric vehicle technicians working on modern hybrid and electric vehicles. Supplied with 9V battery and a carry case.
Contents
1 x Bump cover with probe storage
1 x Set of CAT IV 600V CAT III 1000V 20amp probes
1 x Magnetic hang strap
1 x 6F22 9V battery
1 x Temp probe
1 x Storage case
Specifications
AC Current: 60uA/600uA/6000uA/60mA/600mA/20A
AC Voltage: 600mV/6V/60V/600V/750V
Automatic Power Off: Yes
Battery: 6F22 9V
Capacitance: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF
DC Current: 60uA/600uA/6000uA/60mA/600mA/20A
DC Voltage: 600mV/6V/60V/600V/0.1V/1000V
Dimensions: 190mm x 90mm x 50mm
Diode on/off Test: Yes
Dwell: N/A
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Resistance (Ohms): 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature Range: -20℃ - 1000℃/-4℉ - 1832℉
Weight: 380g (approx.)
